13.4in x 10.8in x 2.35in
100-240 VAC 50/60 Hz
1 Amp
Heat Dissipation
341 Btu/Hour
Humidity: 5% ~ 95% Non Condensing
Shock: 3.5 g @ 10ms duration
Vibration: 0.5 g @ 22~100 Hz
| |
|
|---|---|
| Spec/Model | Single Port VDU / Micro Server |

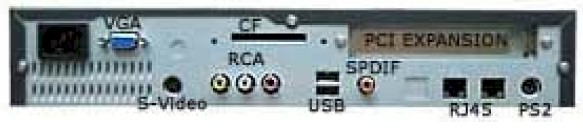

| Video | Simultaneous VGA (standard 15 pin DIN) and TV output (S-Video and composite via RCA jack) |
| LAN | Two (2) x 10/100 Base T |
| Chassis Size (LxWxH) | 13.4in x 10.8in x 2.35in |
| Weight | < 9 pounds |
| Power Requirements | 100-240 VAC 50/60 Hz 1 Amp |
| Cooling Requirements Heat Dissipation |
100 Watts 341 Btu/Hour |
| Environmental | Temperature: 0 C to 50 C Humidity: 5% ~ 95% Non Condensing Shock: 3.5 g @ 10ms duration Vibration: 0.5 g @ 22~100 Hz |
| |
|
